Renaissance Audio Group

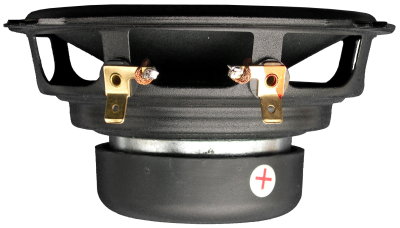

	WR-5 5" Woofer
	Home Audio - Car Speakers - Raw Drivers - Ordering - Home

___________________________________________________________________________________________________

Diameter Depth Mounting Depth Cutout	130mm (5.1") 149mm (5.9") - mounting ears 68mm (2.7") 61mm (2.4") 120mm (4.7")
Power Handling (RMS)	120 Watts
Transient Power (10ms)	800 Watts
Voice Coil	54mm (2") hexagonal aluminum wire aluminum former
Dome Material	Special composite paper cone
Magnetic System	Ducted Double Magnet
Frequency Response	48 - 5,000 Hz
Resonant Frequency (FS)	52 Hz
Sensitivity 1 watt/m	90 dB
DC Resistance(RE)	4 Ohms
Mechanical Q Factor (QMS)	2.14
Total Q Factor (Q/T)	0.45
Equivalent Cas Air Load (VAS)	7.0 liters
Net Weight	0.9 Kg (1.9 lbs)

The WR-5 features a 2" voice coil. The large voice coil (hexagonal shaped aluminum wire) enables this driver to handle large amounts of power while keeping the cone rigid to minimize distortion. The ducted double magnet motor system provides dynamic power while keeping the sound open and smooth. This driver is easily mounted on thin doors or anywhere else where space is a premium.
