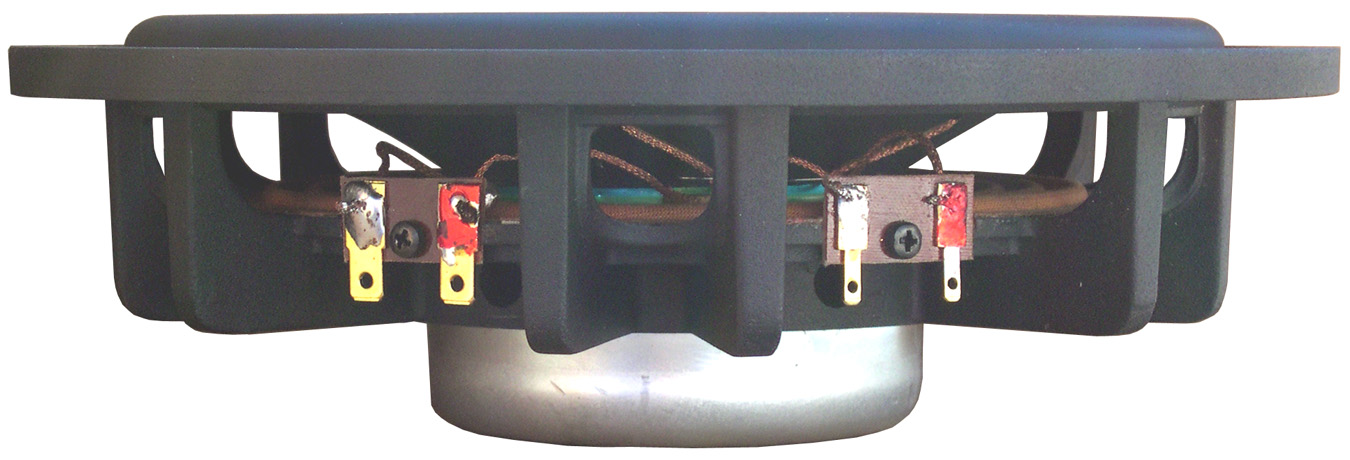

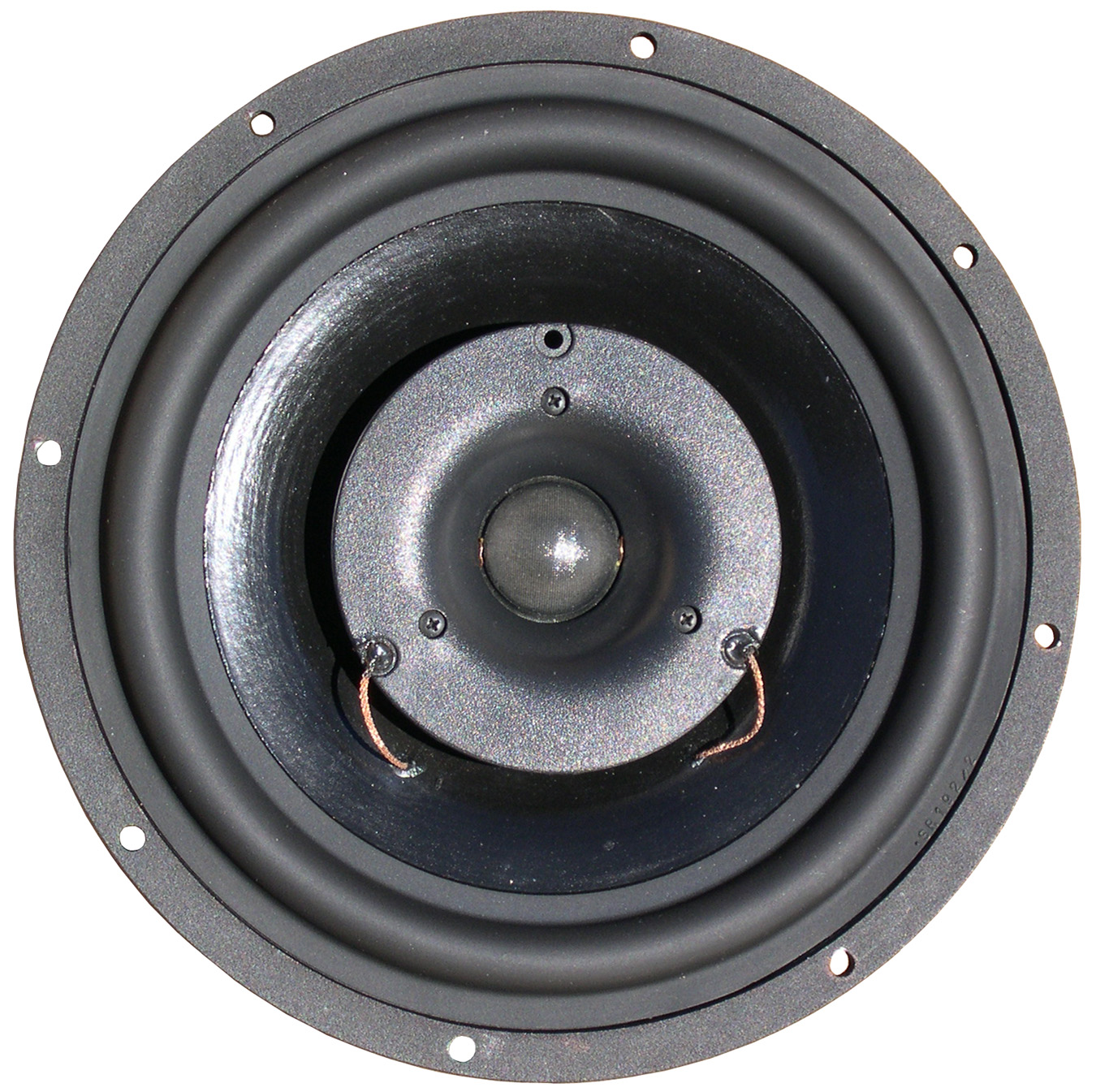

The Uni-Drive 8 is a (1.1") silk soft dome tweeter integrated with woofer. It is based on a double magnet motor system (based on our famous Integra systems). The cavity of the motor system doubles as the acoustic chamber for the tweeter section. The UniDrive-8 sounds open, smooth and detailed. This driver is very versatile because of the shallow mounting depth and separate gold-plated inputs for the tweeter and woofer (it can be bi-wired or bi-amped).
|
Diameter
Depth
Mounting Depth
Cutoutx |
220mm (8.7")
58mm (2.3")
69mm (2.7")
192mm (7.6") |
| Power (RMS) |
150 Watts |
| Peak Power (10ms) |
600 Watts |
| Dome |
Silk Soft Dome
Specially Treated |
| Voice Coil |
(3")
aluminum wire
hexagonal wire
|
| Frequency Response |
45 - 22,000 Hz |
| FS |
38 Hz |
| Sensitivity |
90 dB |
| RE |
4 Ohms |
| VAS |
|
| Net Weight |
1.7 Kg (3.7 lbs) |
|
